How many types of drip irrigation tape production equipment are there?

The drip irrigation tape production line usually consists of a feeding system, a dripper screening and identification device, a conveying device, a head mold and a dripper pasting device, a vacuum sizing tank, a cooling tank, a traction device, a punching device, an analysis alarm device and an automatic winder. These parts work together to ensure the stable operation of the production line and high-quality output. Drip irrigation tape production equipment can be mainly divided into the following four types:

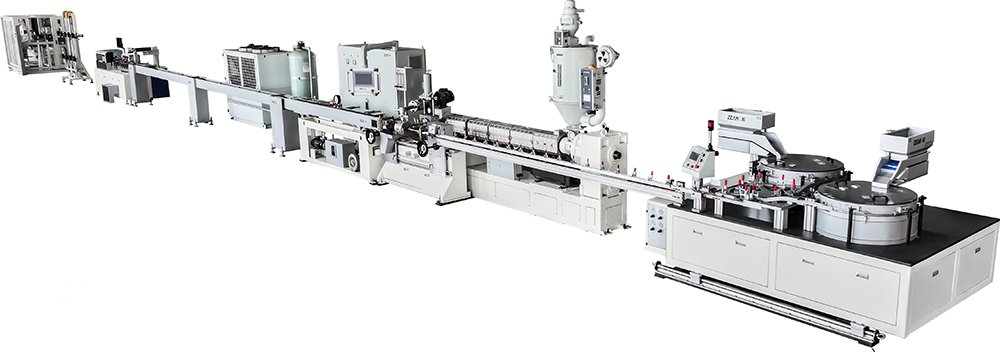

Internal Flat Dripper Irrigation Pipe Production Line:

Specially used for producing drip irrigation pipes with internally flat drippers.Micro-patch drippers are embedded in the drip irrigation tape, and precise irrigation is achieved through the small holes on the patch. Take the drip irrigation tape production line of Xindacheng Company with a production speed of 450m/min as an example. The production line uses high-anti-clogging precision small drippers with a mass of only 0.1 grams;The weight of the drip irrigation pipe is less than 7g/m, which greatly saves raw materials and thus saves costs；Servo motor as drive, saving 30% of electricity;Full automatic punching machine.It is equipped with an online imaging system and a PLC-operated display screen to monitor and analyze punching images. It has automatic alarm and information storage functions, making the production process stable and convenient. It is suitable for vegetables, fruit trees, etc.

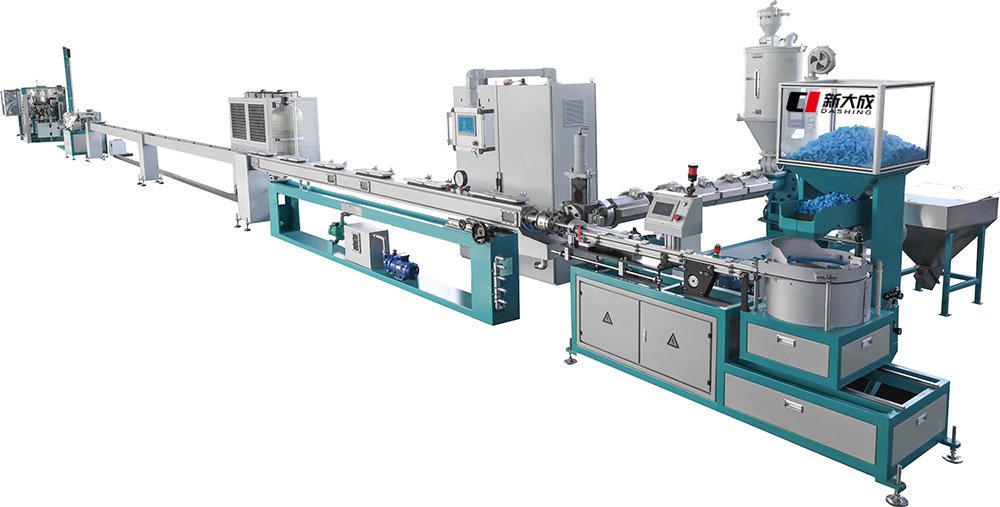

Cylindrical drip irrigation pipe production line:

This equipment is specially used to produce drip irrigation pipes with cylindrical drippers. The drippers and pipes are integrated, with wide arc-shaped flow channels, full turbulence and self-flushing functions, and excellent anti-clogging and anti-aging properties. Its production process is highly automated, with high production efficiency, stable product quality, energy saving and environmental protection, which greatly improves production efficiency. It is suitable for plain areas and can also be effectively used in complex terrain conditions such as hills and slopes.

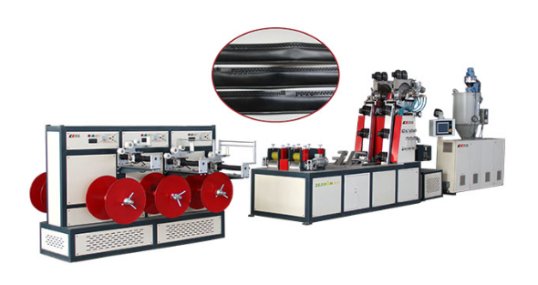

Labyrinth drip irrigation tape production line:

Equipment specially designed for the production of drip irrigation tapes with labyrinth flow channels. The labyrinth drip irrigation pipe has a specially designed wider labyrinth water flow channel with turbulent water flow, which is conducive to reducing the deposition of impurities in the water flow, improving anti-clogging performance, ensuring normal water discharge, and making the irrigation process smoother. Water outlet setting: The production line is equipped with a specially designed molding wheel device, which can achieve rapid cooling and clear molding of the labyrinth. At the same time, labyrinth water outlets with different spacings can be set according to user requirements to meet different irrigation needs.

Pressure-compensating drip irrigation tape production line:

The pressure-compensating dripper adopts a silicone diaphragm design, which responds differently to different water pressures and maintains a uniform flow rate under different water pressures, thereby maintaining a constant outflow resistance, achieving constant energy, and ensuring that each crop can get the same amount of irrigation. The pressure-compensating dripper can achieve a continuous self-cleaning effect and can effectively prevent the dripper from clogging. It can achieve uniform growth of crops in any area and any terrain. It is especially suitable for undulating terrain.
